| Aluminum Clad Awning Windows

Feature Note: Awning windows are top-hinged and open outward from the bottom, making them useful for ventilation, stacked layouts, horizontal rows, and operating transom applications.

Awning windows also include a position-lockable, fold-down vinyl nail fin for easy shipping and durable installation.

• Custom sizes.
• 22 Estate Colors and custom exterior color options.
• Upgraded LoE coatings.
• Tempered and/or obscured glass.
• Hardware color upgrades including Oil Rubbed Bronze, Satin Nickel, Antique Brass, Brass, and Antique Nickel.
• Grille options including Grilles Between the Glass (GBG) and Simulated Divided Lites (SDL).
• Blinds between the glass with 10 year glass warranty.
• Factory stain, prime, or paint finishes including custom interior paint.
• Factory-installed extension jambs up to 8-1/4".
• PetScreen and BetterVue screen fabric with Water Shed Technology^TM.
• Aluminum extruded brickmold or panning material.
• Masonry installation straps in 7", 9", or 11" depths.
• Factory mulled combinations with interior mullion strips supplied.

• Awning windows are hinged at the top and open outward from the bottom.
• Top-hinged operation can allow ventilation during light rain.

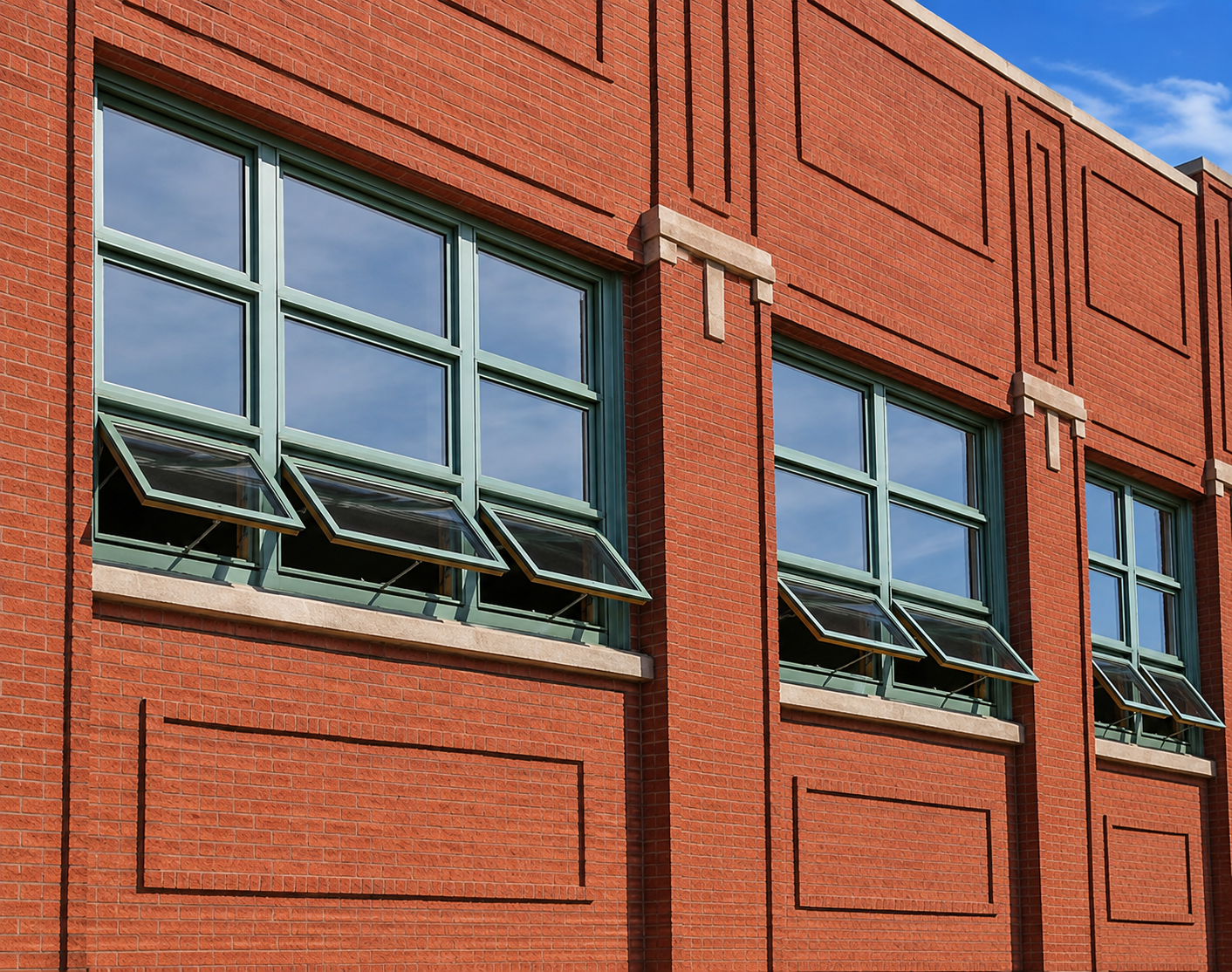

• Awnings can be used alone, stacked vertically, or installed in horizontal rows.
• Awnings can be used as operating transoms above casement or double-hung windows.
• Window size, glass package, grille selection, hardware finish, screen option, jamb depth, and installation accessories should be reviewed together before ordering.

Glass Selection Note: The base glass configuration is clear insulated glass with air fill. LoE glass packages are typically required when a project must meet a specific local energy code requirement, U-factor requirement, SHGC requirement, or performance target. Customers and project teams are responsible for confirming applicable energy requirements before purchasing Casco aluminum-clad awning windows.

Base Glass Configuration

The base glass configuration for Casco Aluminum-Clad Awning Windows is clear insulated glass with air fill. This base configuration may be used when the project does not require a specific Low-E package and the applicable energy requirements allow it.

Clear glass allows strong visible light, but it does not provide the same solar control, UV protection, or U-factor performance as Low-E glass packages. When a project has a local energy code requirement or a specific U-factor, SHGC, or performance target, a Low-E glass package is typically required.

• U-factor measures heat flow through the window assembly. A lower U-factor means better resistance to heat loss.
• SHGC measures how much solar radiation enters as heat. A lower SHGC helps reduce solar heat gain.
• Visible Transmittance measures how much visible light passes through the glass. A higher visible transmittance means more daylight.
• UV transmission relates to fading protection. Lower UV transmission helps reduce fading potential for furniture, flooring, fabrics, artwork, and interior finishes.
• Glare control reduces harsh visible light in direct sun conditions.
• Privacy control can be handled through obscure glass or blinds-between-glass depending on whether the project needs permanent privacy or integrated blind operation.

Laminated Glass

Laminated glass is available for Casco aluminum-clad awning windows. Laminated glass can be ordered with the same Cardinal LoE glass options when the project requires laminated glass along with a specific Low-E package.

Laminated glass is commonly reviewed when the project requires added safety, sound control, security considerations, impact resistance considerations, or project-specific glass requirements. The correct laminated glass configuration should be reviewed with the required Cardinal LoE coating, energy performance requirements, unit size, project location, and applicable code requirements before ordering.

Obscure Glass

Obscure glass is available for awning windows. It is commonly used in bathrooms, mud rooms, utility areas, and other locations where privacy is needed while still allowing light into the room.

Blinds-Between-Glass

Blinds-between-glass options are available where size, product configuration, glass package, and project requirements allow. These options place the blind inside the insulated glass unit, helping protect the blind from dust, damage, and exposed cords.

Blinds-between-glass options must be reviewed for available sizes, glass type, Low-E requirements, operation type, warranty, lead time, and the project’s required energy performance before ordering.

• Clear insulated glass with air fill is the base glass configuration.
• LoE options are typically required when a project must meet a specific local energy code requirement or performance target.
• Quad LoE-452+ with Neat+ is commonly used for strong solar control, neutral appearance, lower solar heat gain, fade protection, and naturally cleaner exterior glass.
• LoE³-366^® is commonly used for balanced energy performance and clear appearance.
• LoE²-272 is commonly reviewed for balanced Low-E performance, good visible light, and moderate solar control.
• LoE³-340+ is commonly used for direct sun and glare control.
• LoE-i89 combinations are commonly used for improved winter thermal performance, northern climates, and lower U-factor requirements.
• Triple pane LoE³-366^® with LoE-180™ is available when the project requires additional glass performance beyond standard dual pane configurations.
• Laminated glass is available with the same Cardinal LoE options.
• Specialty glass and blinds-between-glass options must be checked against size limits, glass package availability, lead time, and project performance requirements.
• The customer, dealer, contractor, architect, builder, or project team must confirm which glass package is required before ordering.

Grille Note: Grille type and grille style should be reviewed with the awning window configuration, glass selection, exterior color, interior finish, hardware finish, and architectural appearance of the project before ordering.

Grilles Between the Glass

Internal grilles are positioned between the two panes of insulating glass. This provides the visual appearance of divided lites while keeping the interior and exterior glass surfaces easier to clean.

All internal grilles are available in two-tone finishes. The exterior color of the grille is matched to the window exterior color, and white is included on the interior side to coordinate with painted white interior finishes.

Common Use: Awning window projects where a grille pattern is desired with easier glass cleaning and a cleaner surface compared with applied grilles.

Simulated Divided Lite Grilles

Simulated Divided Lite (SDL) grilles are mounted to the exterior surface of the glass on both the exterior and interior of the window. SDL grilles create a richer divided-light appearance compared with internal grilles alone.

Adding a third internal grille between the glass can further enhance the look of SDL grilles by creating additional visual depth through the insulating glass unit.

Common Use: Traditional, historic-style, architect-specified, or design-focused awning window projects where a more authentic divided-lite appearance is desired.

Interior Removable Wood Grilles: Interior removable wood grilles are also available for projects requiring that grille option.

• Internal grilles are positioned between the panes of insulating glass.
• Internal grilles are available in two-tone finishes.
• SDL grilles are mounted to the exterior and interior glass surfaces.
• An internal grille between the glass can be added with SDL grilles for additional visual depth.
• Interior removable wood grilles are available when that option is required.
• Grille type, grille pattern, exterior color, interior finish, glass selection, and hardware finish should be reviewed together before ordering.

Hardware Note: Casco awning windows include a fold-down crank handle, operator, single lever multipoint sash lock, and adjustable sash hinges. Hardware color should be reviewed with the selected interior finish, exterior color, grille option, and screen frame color.

• Casco awning windows include a fold-down crank handle.
• Casco awning windows include an operator, single lever multipoint sash lock, and adjustable sash hinges.
• The sash is top-hinged and opens outward from the bottom.
• Extruded screen frames are supplied to coordinate with selected hardware color where applicable.
• Hardware color should be reviewed with the interior wood finish, exterior color, grille selection, screen frame color, and project design before ordering.

Combination Note: Awning window combinations should be reviewed with the opening size, operating units, fixed units, transom locations, grille pattern, glass package, exterior color, interior finish, hardware color, and installation requirements before ordering.

Awning windows can be stacked vertically to create a distinctive design feature while providing controlled ventilation through selected active units.

Stacked layouts should be reviewed with active unit locations, grille pattern, hardware access, screen placement, clear opening needs, and installation requirements.

Awning windows can be installed side by side in a single horizontal row. This can create a wider glass area while allowing selected units to operate for ventilation.

Horizontal rows should be reviewed with mullion requirements, active unit locations, hardware access, screen options, grille pattern, and the overall wall opening.

Awning windows can be used as operating transom windows above casement or double-hung windows. This allows additional ventilation into the room instead of using a traditional non-venting fixed transom.

Operating transom applications should be reviewed with the height of the opening, operation access, hardware reach, grille alignment, mullion details, and the surrounding window package.

• Awning windows can be used alone, stacked vertically, or placed side by side.
• Awnings can be used as operating transoms above casement or double-hung windows.
• Active unit location should be reviewed before ordering.
• Hardware reach and operation access should be considered for higher awning locations.
• Grille patterns should be reviewed across the full window grouping.
• Factory mulled combinations with interior mullion strips supplied are available where applicable.

Quick Summary: Casco Aluminum-Clad Awning Windows are top-hinged windows that open outward from the bottom for controlled ventilation. They are built with heavy-duty extruded aluminum-clad exteriors, not roll-form aluminum or vinyl cladding, along with pine wood interiors, clear insulated glass with air fill as the base glass configuration, LoE glass options typically required when the project must meet specific local energy code requirements, fold-down crank hardware, single lever multipoint sash locking, adjustable sash hinges, screen options, grille options, NFRC-certified performance, and custom sizing. Awning windows can be used alone, stacked vertically, installed in horizontal rows, or used as operating transoms above casement or double-hung windows.

An awning window is a top-hinged window that opens outward from the bottom. Instead of lifting vertically or swinging from the side, the sash projects outward from the bottom edge while staying hinged at the top.

Awning windows are commonly selected when a project needs controlled ventilation, a clean horizontal appearance, light-rain ventilation, or an operating transom above another window.

Casco awning windows use a fold-down crank handle, operator, single lever multipoint sash lock, and adjustable sash hinges. The sash is hinged at the top and opens outward from the bottom.

This operation allows the window to vent while helping shield the opening from light rain better than many other operating window styles.

Yes. Awning windows are useful for controlled ventilation because the bottom of the sash opens outward. They can be used alone, stacked, placed in rows, or used above other windows to add airflow.

Awning windows are especially useful in bathrooms, kitchens, basements, bedrooms, sunrooms, offices, and higher wall openings where ventilation is desired.

Yes. Awning windows can be used as operating transom windows above casement or double-hung windows. This can provide additional ventilation into a room instead of using a traditional non-venting fixed transom.

Operating transom applications should be reviewed with window height, hardware reach, grille alignment, mullion details, and the surrounding window package.

General aluminum-clad window and patio door information can be reviewed in the Casco Aluminum-Clad Window & Patio Door Guide. Awning sizing can be reviewed in the Casco Awning Window Size Chart.

Yes. Casco Aluminum-Clad Awning Windows include clear insulated glass with air fill as the base glass configuration, with LoE glass options typically required when the project must meet specific local energy code requirements. They also include bulb/fin sash weather-stripping and locking hardware to help the sash close securely.

Casco awning windows are NFRC certified for performance documentation and project review.

Yes. Casco Aluminum-Clad Awning Windows are National Fenestration Rating Council (NFRC) certified. NFRC certification supports performance documentation for homeowners, contractors, dealers, architects, and project teams reviewing U-factor, solar heat gain, visible transmittance, and related performance data.

No. The base glass configuration for Casco aluminum-clad windows is clear insulated glass with air fill. LoE glass options are typically required when a project must meet a specific local energy code requirement or performance target.

Before purchasing, the customer, dealer, contractor, architect, builder, or project team must review the applicable energy requirements and select the product configuration needed to meet those requirements. This may include selecting the correct LoE coating, including LoE²-272, LoE³-366^®, LoE³-340+, Quad LoE-452+, LoE-i89 combinations, gas fill, pane configuration, grille option, unit type, and overall window configuration.

Customers, dealers, contractors, architects, builders, and project teams are responsible for reviewing the project energy requirements before purchasing Casco aluminum-clad windows. Requirements can vary by location, building code, project type, glass package, unit configuration, orientation, and overall project design.

Casco provides available product configurations, glass options, NFRC-certified performance information, and supporting product documentation. The project team must confirm that the selected window type, glass package, grille option, unit configuration, and overall product selection meet the applicable energy requirements before ordering.

Yes. Custom sizes are available for Casco Aluminum-Clad Awning Windows. Custom awning window sizing should be reviewed with the project opening, rough opening condition, jamb depth, installation method, glass selection, grille selection, hardware location, screen option, and combination layout before ordering.

Awning window size information can be reviewed in the Casco Awning Window Size Chart.

Yes. Casco awning windows can be used as stand-alone windows or combined with other windows to create the desired design. Awnings can be stacked vertically, installed side by side in horizontal rows, or used with picture, casement, double-hung, and specialty windows.

For examples, review the Combinations section.

Yes. Awning windows can be stacked vertically to create distinctive design features while allowing selected units to operate for ventilation.

Stacked awning layouts should be reviewed with active unit locations, grille pattern, hardware access, screen placement, and installation requirements.

Yes. Awning windows can be installed in a single horizontal row to create a wider glass layout while maintaining operating ventilation through selected units.

Horizontal awning rows should be reviewed with mullion requirements, active unit locations, hardware access, grille pattern, and the overall wall opening.

Casco Aluminum-Clad Awning Windows use a 4-9/16" jamb depth as a standard feature.

The base glass configuration for Casco Aluminum-Clad Awning Windows is clear insulated glass with air fill. LoE glass options and upgraded glass packages are available when additional performance is required.

Because energy requirements vary by project location, building code, unit type, glass package, and configuration, the customer or project team must confirm whether the base glass configuration is acceptable or whether a LoE option is required before ordering.

Available glass options include LoE²-272, LoE³-340+, LoE³-366^®, LoE³-366^® with LoE-i89, Quad LoE-452+, Quad LoE-452+ with LoE-i89, triple pane LoE³-366^® with LoE-180™, LoE-i89, Neat^® naturally clean glass, tempered glass, laminated glass, obscure glass options, and blinds-between-glass options where size, product configuration, and project requirements allow.

LoE options are typically required when a project must meet a specific local energy code requirement, U-factor requirement, SHGC requirement, or performance target. For more detail, review the Glass & Screen section.

Yes. Obscure glass is available for awning windows. It is commonly used in bathrooms, mud rooms, utility areas, and other locations where privacy is needed while still allowing light into the room.

Yes. Blinds-between-glass options are available where size, product configuration, glass package, and project requirements allow. These options place the blind inside the insulated glass unit, helping protect the blind from dust, damage, and exposed cords.

Blinds-between-glass options must be reviewed for available sizes, glass type, Low-E requirements, operation type, warranty, lead time, and the project’s required energy performance before ordering.

Casco awning windows include an extruded screen frame. Standard screen, BetterVue, and PetScreen fabric options are available. BetterVue is used when improved visibility is desired. PetScreen is used when added screen durability is needed.

Casco awning windows are available with internal grilles, simulated divided lite (SDL) grilles, grille style patterns, and interior removable wood grilles. Internal grilles are positioned between the panes of insulating glass. SDL grilles are mounted to the exterior and interior glass surfaces.

For grille details and galleries, review the Grilles section.

Yes. Internal grilles are available in two-tone finishes. The exterior color of the grille is matched to the window exterior color, and white is included on the interior side to coordinate with painted white interior finishes.

Casco awning windows include a fold-down crank handle, operator, single lever multipoint sash lock, and adjustable sash hinges. Hardware options should be reviewed with the selected interior finish, exterior color, grille pattern, screen frame color, and project design.

For hardware finish galleries, review the Hardware section.

Yes. Casco Aluminum-Clad Awning Windows can be used for replacement, remodel, and new construction projects. Replacement requirements depend on the existing opening, rough opening condition, wall construction, interior trim, exterior cladding, installation method, and final finish details.

Yes. Available installation-related options include factory-installed extension jambs up to 8-1/4", aluminum extruded brickmold or panning material, masonry installation straps in 7", 9", or 11" depths, and factory mulled combinations with interior mullion strips supplied.

Yes. Hardware reach should be reviewed when awning windows are installed high on a wall, stacked vertically, or used as operating transoms. The project team should confirm that the selected window location can be comfortably operated after installation.

Helpful quoting information includes quantity, unit size, whether the awning is stand-alone or part of a combination, applicable project energy requirements, required glass performance, glass option, laminated glass requirements, obscure glass requirements, blinds-between-glass requirements when applicable, grille option, exterior color, interior finish, hardware color, screen option, jamb requirements, installation accessories, factory mulling needs, delivery location, and project schedule.

Yes. Casco Aluminum-Clad Awning Windows are a strong option for architect-specified projects requiring custom sizing, aluminum-clad exterior finish options, pine wood interiors, grille options, Cardinal glass options, NFRC certification, and grouped window layouts.

Architects and project teams can also review Casco’s Architect-Specified Windows & Doors page for related product options and specification-focused information.

Yes. Awning windows can be combined with fixed picture windows, casement windows, double-hung windows, specialty windows, and other compatible units to create larger glass layouts while maintaining ventilation through selected operating awning units.

Yes. Awning windows can be used in modern, transitional, and traditional designs depending on the grille pattern, color selection, interior finish, placement, and surrounding window package.

Stacked awnings and horizontal rows are often used for distinctive design features, while awnings above other windows can provide a more functional operating transom.

Yes. Casco supplies aluminum-clad awning windows through its supported dealer network for homeowners, contractors, remodelers, builders, architects, and project buyers. Dealers and lumberyards can use Casco aluminum-clad awnings to support replacement, remodel, new construction, architectural, and light commercial project opportunities.

Related products include Aluminum-Clad Casement Windows, Aluminum-Clad Double-Hung Windows, Aluminum-Clad Windows, Replacement Casement Sashes, Double-Hung Replacement Kits, Aluminum Storm Windows, and Aluminum Storm Doors.

Shared Product Note: The sections below cover aluminum-clad product details that repeat across Casco’s aluminum-clad product line, including extruded aluminum cladding, wood interiors, finish options, Cardinal glass packages, energy-code review, screens, specialty glass, laminated glass, and blinds-between-glass options.

An aluminum-clad wood window uses aluminum on the exterior and wood on the interior. Casco aluminum-clad products use heavy-duty extruded aluminum cladding on the exterior, not roll-form aluminum or vinyl cladding. The extruded aluminum-clad exterior helps protect the outside of the window from weather exposure, while the wood interior provides a traditional appearance and finish flexibility inside the home.

Aluminum-clad windows are selected when a project needs exterior durability and interior wood appearance. The aluminum exterior reduces exterior maintenance compared with exposed wood, while the pine interior provides a warmer interior appearance that can coordinate with trim, cabinetry, flooring, doors, and other interior finishes.

Yes. Casco aluminum-clad windows and doors use extruded aluminum cladding. Casco does not use roll-form aluminum cladding or vinyl cladding on its aluminum-clad product line.

Extruded aluminum is a heavier-duty exterior cladding system that is formed through an extrusion die, creating a stronger and more substantial profile than thin roll-form cladding or vinyl exterior cladding.

Casco aluminum-clad products are available with exterior standard colors, exterior Estate Colors, and custom exterior color options. Physical color samples must be reviewed before final selection whenever color accuracy is important.

For current color galleries, review the Colors section.

Factory stain, prime, or paint finishes are available, including custom interior paint. Interior prefinished wood colors are also available for projects requiring a factory-finished pine interior.

The correct glass configuration depends on the project energy requirements, climate zone, sun exposure, room use, visible light goals, solar heat gain goals, and required NFRC performance. The base glass configuration is clear insulated glass with air fill. LoE glass options are typically needed when the project must meet a specific local energy code requirement or performance target.

Clear insulated glass with air fill is the base configuration. It may be appropriate only when the project does not require a specific Low-E performance package and the energy requirements allow it.

LoE²-272 is commonly reviewed for balanced Low-E performance, good visible light, and moderate solar control.

LoE³-366^® is commonly used as a balanced high-performance Low-E option when the project needs improved energy performance, solar control, UV protection, and clear visibility.

LoE³-340+ is commonly used when greater glare control and lower solar heat gain are needed, especially for direct sun exposures.

Quad LoE-452+ is available when the project needs strong solar control with a clear, neutral appearance.

LoE-i89 is an interior surface coating used when additional U-factor improvement is needed.

The customer, dealer, contractor, architect, builder, or project team must confirm which glass package is required before ordering.

Casco Aluminum-Clad Awning Windows offer top-hinged operation, controlled ventilation, light-rain ventilation, heavy-duty extruded aluminum-clad exterior protection, not roll-form or vinyl cladding, pine wood interiors, clear insulated glass with air fill as the base glass configuration, LoE glass options typically required when the project must meet specific local energy code requirements, fold-down crank hardware, single lever multipoint sash locking, adjustable sash hinges, screen fabric options, NFRC certification, custom sizing, grille options, color flexibility, and combination capabilities.

They are a strong choice for homeowners, contractors, dealers, lumberyards, architects, and project teams looking for custom aluminum-clad awning windows that balance exterior durability, interior wood appearance, energy performance, ventilation, and design flexibility.
